Asset Management RFID Long Range UHF 860-960MHz Passive Inlays

Certification
China Shenzhen jianhe Smartcard Technology Co.,Ltd certification
China Shenzhen jianhe Smartcard Technology Co.,Ltd certification
I'm Online Chat Now

Asset Management RFID Long Range UHF 860-960MHz Passive Inlays

Asset Management RFID Long Range UHF 860-960MHz Passive Inlays

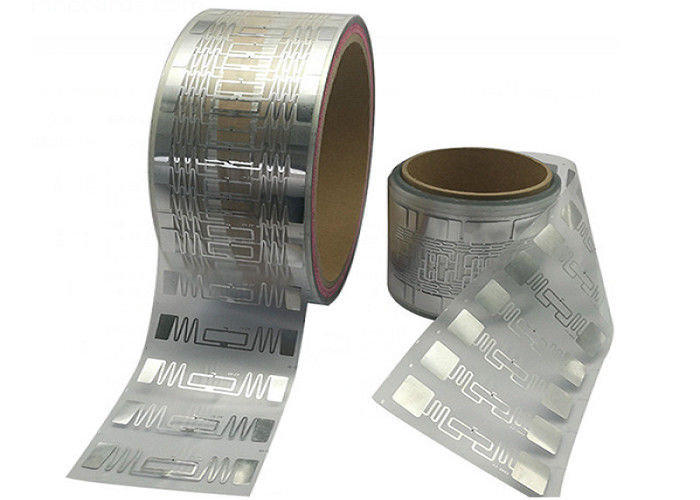

Asset Management RFID Long Range UHF 860-960MHz Passive Inlays Asset Management RFID Long Range UHF 860-960MHz Passive Inlays

Large Image :  Asset Management RFID Long Range UHF 860-960MHz Passive Inlays

Product Details:
Place of Origin: Shenzhen,China
Brand Name: JH
Certification: CE,SGS.RHOS
Model Number: RFID Inlay-Alien H3 9662
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 5000 pcs/ roll, 4rolls/Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 10,000,000 pcs per month

Asset Management RFID Long Range UHF 860-960MHz Passive Inlays

Description
Type: UHF RFID Inlays Marerial: Al ,Pet,paper Etc
Frequency: 860-960 MHz Standards/Protocols: EPC CLASS1 GEN2, ISO 18000-6C
Read Distance: Up To 6m Application: Logistics & Supply Chain
High Light:

UHF 860-960MHz passive inlays

,

RFID passive inlays

,

RFID UHF inlays

Asset Management RFID Long Range UHF 860-960MHz Passive Inlays



Asset management RFID long range UHF 860-960MHz passive inlays



Description:

RFID inlays are classified as “wet” or “dry”.

RFID Dry Inlays are described as “Dry” due to their lack of adhesive backing. Dry inlays attach an RFID microchip (IC) and antenna to a material or substrate called a web. These inlays look like they have been laminated and come standard with no adhesive.

RFID Wet Inlays are described as “wet” due to their adhesive backing, so they are essentially industrial RFID stickers. Passive RFID Tags are comprised of two parts: an integrated circuit for storing and processing information and an antenna for receiving and transmitting the signal. They have no internal power supply. RFID Wet Inlays are best for applications where a low-cost “peel-and-stick” tag is needed. Any RFID Wet Inlay can also be converted into a paper or synthetic face label.



UHF inlay is specially designed for multi-tag reading applications, which meets the standard of EPC C1 G2 (ISO 18000-6C). With the operating frequency 902~928Mhz, the tag has its anti-collision mechanism that could prevent data interference.



Asset Management RFID Long Range UHF 860-960MHz Passive Inlays 0



UHF RFID Inlay H9662/9762 Specification:

  • Antenna Size:0.67 x 2.75 in/17 x 70 mm
  • Chip:H3/H4
  • Antenna Material:AL
  • Substrate Material:PET
  • Read Distance:Up to 6m
  • Application:Logistics & Supply Chain



Physical Characteristics
Antenna Dimension 17 x 70 mm
Inlay /Tag Dimension 20 x 73 mm
Antenna Pitch 25.40±0.500
PET Width 74.00±1.00
Electronic Characteristics
Protocol EPC Class 1 Gen 2/ISO 18000-6C
Manufacture / IC Alien Higgs 3 / Alien Higgs 4
EPC / TID /User Memory 96bits /96bits /512bits 128bits /96bits /128bits
Base Material PET
Face Stock N/A
Antenna Etched Aluminum (10μm)+ PET (50μm)
Operating Frequency FCC, ETSI
Operating Mode Passive
ESD Voltage Immunity Max.2000V Human being mode(HBM)
Environment & Package
Operating Temperature -50°C to +85°C
Storage Temperature -50°C to +85°C
Static pressure <10 MPa
Package 5000 pcs/ roll, 4rolls/Carton
Delivery Formats
Available formats Dry Inlay, Wet Inlay, RFID Tag
Quality 100% tested with out-of-tolerance inlay marked
Inner core diameter 76 mm/3 inch



Package:

5000 pcs/ roll, 4rolls/Carton



Asset Management RFID Long Range UHF 860-960MHz Passive Inlays 1

FAQ
Q: Are you a manufacturer or trading company?
A: We are manufacturer with a history of 16 years.

Q: Could you write my company website in the tag?
A: Yes. Tap your tag and link to your company website.

Q: Will the encoding/programming be done by ourselves or by your company?
A: The tags/cards can be blank for being encoded by you. They can be preprogrammed if necessary.

Q: Could I get the free sample for testing?
A: Yes, in order to show our sincerity, we could offer you free sample for testing to support you.

Q: Do you also supply OEM service?
A: Yes, Since we keep professional manufactory with own moulding line and product line, so we could help to print LOGO on the products to make them unique.

Q: How do you control the quality?
A: Quality is priority, is the life of our company. We have a strict quality controlling system and has gained CE authentication.

Q: How can we get free samples from yours
A: We respect everyone of our customers and can contact or mail to us for RFID Sticker Tag sample testing request , normally 2-4 pcs for testing .
