Product Details:
|
Material: | PVC, PET, ABS Etc. | Size: | 85.6 X 54 Mm |
---|---|---|---|
Thickness: | 0.84 Mm | Chip: | EM 4205 / 4305(EM-marine) |
Frequency: | 125 KHz | Protocol: | ISO 11784/11785 |
Memory: | 512 Bits | Color: | Blank Or Pre-printed |
High Light: | EM4305 RFID Smart Cards,EM4305 RFID Cards,EM4205 Smart Cards |

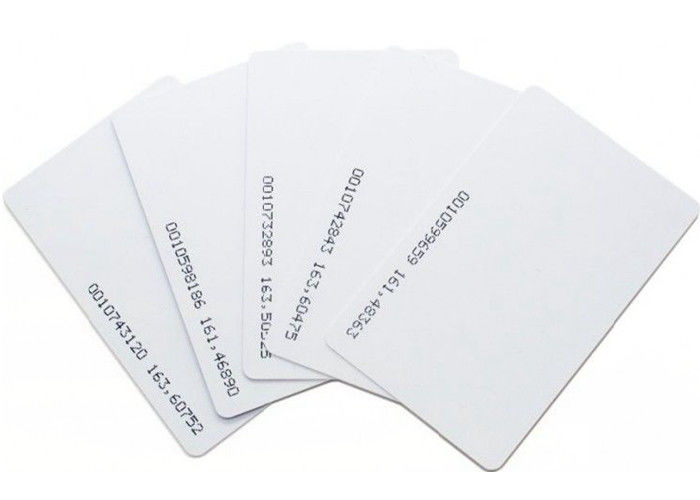

Security Rewritable EM4205 EM4305 RFID Smart Cards
Plastic 125KHz rewritable EM4205 / EM 4305 security RFID card
Description
The EM4205/EM4305 proximity contactless card is suitable for low cost solutions like animal tagging applications. The IC communication protocol is compatible with the EM4469/EM4569 family. It is a great solution for access control, pre-payment systems, ticketing systems, loyalty program, time attendance systems and staff identification etc.We manufacture both blank card, and pre-printed card.
Card Features
IC Manufacturer: EM Microelectronic
Chip:EM4205 / 4305
Operating Frequency :125KHz
Dimensions: 85.6 x 54 mm (CR80)
Thickness: 0.84 mm
Material: PVC, PET, ABS etc for optional
Surface: glossy,matte
Function:Read and write
Reading disdance: 6CM
RF Protocol: ISO 11784 / 11785
Data storage time : Minimum 10 years
Operating temperature : -20 ~ +60°C
Stockage temperature : -20 ~ +65°C
Chip Features
512 bit EEPROM organised in 16 words of 32 bit
32 bit unique identifier (UID)
32 bit Password read/write protection
Reader Talk First feature
Anti-collision: Yes
Reading distance: 6cm
Very low power consumption
Enlarged bumped pads (200 μm x 400 μm) for direct connection of coil (EM4305)
EM4205: 2 resonant capacitor versions 210pF or 250pF selectable by mask option
EM4305: 3 resonant capacitor versions 210pF, 250pF or 330pF selectable by mask
Available crafts
Custom printing
Magnetic stripe (LoCo300,HiCo2750/4000,Magstripe encoding)
Signature panel or Scratch off panel
Print of Serial Number, UID, Barcode(Jet dot/ Thermo transfer/ Laser engrave,Embossing)
Print of Personalization: Name/Photo
Hot Foil, Hologram
Special colors: Silver/Gold/Metallic colors
Special overlay: UV/EVC
Punch Hole
Application
1. Animal Identification according to ISO FDX-B
2. Pigeon races standard
3. Waste management standard (BDE)
4. Access Control
FAQ
Q: Are you a manufacturer or trading company?
A: We are manufacturer with a history of 16 years.
Q: Could you write my company website in the tag?
A: Yes. Tap your tag and link to your company website.
Q: Will the encoding/programming be done by ourselves or by your company?
A: The tags/cards can be blank for being encoded by you. They can be preprogrammed if necessary.
Q: Could I get the free sample for testing?
A: Yes, in order to show our sincerity, we could offer you free sample for testing to support you.
Q: Do you also supply OEM service?
A: Yes, Since we keep professional manufactory with own moulding line and product line, so we could help to print LOGO on the products to make them unique.
Q: How do you control the quality?
A: Quality is priority, is the life of our company. We have a strict quality controlling system and has gained CE authentication.
Q: How can we get free samples from yours
A: We respect everyone of our customers and can contact or mail to us for RFID Sticker Tag sample testing request , normally 2-4 pcs for testing .
