IP65 RFID Card Reader Writer

Certification
China Shenzhen jianhe Smartcard Technology Co.,Ltd certification
China Shenzhen jianhe Smartcard Technology Co.,Ltd certification
I'm Online Chat Now

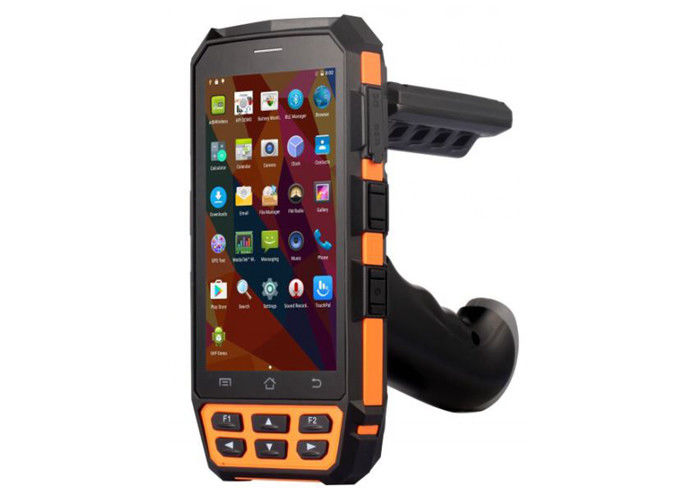

IP65 RFID Card Reader Writer

IP65 RFID Card Reader Writer
IP65 RFID Card Reader Writer IP65 RFID Card Reader Writer IP65 RFID Card Reader Writer

Large Image :  IP65 RFID Card Reader Writer

Product Details:
Place of Origin: Shenzhen,China
Brand Name: JH
Certification: CE,RHOS,SGS
Model Number: JH-HW01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs /box
Delivery Time: 5-8work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1000000 per month

IP65 RFID Card Reader Writer

Description
Size: 173*150*85 Mm Weight: Net Weight :660 G (including Battery & Wrist Strap)
Battery: Rechargeable Li-ion Polymer, 3.7V, 8100mAh Backlight: LED Backlight
Expansions: 2 PSAM, 1 SIM, 1 TF Humidity: 5% RH To 95% RH(non-condensing)
High Light:

IP65 RFID Card Reader Writer

,

IEC RFID Card Reader Writer

,

16GB ROM RFID Card Reader Writer

IP65 with Barcode Scanner and Long Distance UHF handheld Reader

Product technical parameter

Performance characteristics

Model number

JH-HW01

Dimension

173*150*85mm

Weight

Net weight:660g (including battery & wrist strap)

Display

Gorilla 5.0 in TFT-LCD(720*1280) touch screen with backlight

Backlight

LED backlight

Keypads

3TP keys, 6 funtion keys, 4 side buttons

Expansions

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 8100mAh

Performance Characteristics

CPU

Quad A53 1.3GHz quad-core

Operation system

Android 7.0

Storage

2GB RAM,16GB ROM,Micro SD (maz 128GB expansion)

User Environment

Operating Temp

-20℃ ~ +50℃

Storage Temp

-20℃ ~ +70℃

Humidity

5% RH to 95% RH(non-condensing)

Drop Specifications

5ft/1.5m drop to concrete across the operating temperature range

Sealing

IP65,IEC compliance

ESD

+-15kv air discharge,+-8kv direct discharge,+-8kv indirect discharge

Development Environment

SDK

HHW Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

Data Communication


WWAN

TDD-LTE Band 38.39.40,FDD-LTE Band
WCDMA(850/1900*2100MHz)
GSM/GPRS/Edge 850/1800/1900mhz)

WLAN

2.45GHz/5GHz Dual Frequency,IEEE 802,11 a/b/g/n

WOAN

Bluetooth Calss v2.1 + EDR, Bluetooth V3.0+HS,Bluetooth V4.0

GPS

GPS (embedded A-GPS), accuracy of 5m

Data capture

Barcode Reader(optional)

1D Barcode

1D laser engine: Symbol SE955
Symbologies:All major 1D barcodes

2D Barcode

Symbologies:
Pdf417, MicroPDF417,Composite,rss tlc-39,Datamateic, QR code, Micro QR code,Azter,Maz, Postal Codes, US PostNet,US Planet,UK Postal, Australian Postal, Japan Postal,Dutch Postal etc

Color Camera

Resolution

8.0 megapixel

Lens

Auto-focus with LED flash

RFID reader(optional)


RFID LF

Frequency:125KHz/134.2KHz(FDX-B/HDX)

Protocol:ISO1178&11785

R/W Range:2cm to 10 cm


RFID HF

Frequency:13.65MHz

Protocol:ISO14443A/ISO15693

R/W Range:2cm to 10cm


RFID UHF

Frequency:865-868MHz or 902-928MHz

Protocol:ISO18000-6V(EPC HEN2)

Antenna gain:3dbi circular antenna

R/W Range:5m-7m(tags and environment)

Active 2.45GhZ

Read range more than 200m

Fingerprint Reader(optional)

Sensor

TCS1××

Sensor type

Capacitive,area sensor

Resolution

FRR<0.008%,FAR<0.005%

Capacity

1000

PSAM Security

Protocol

ISO7816

Baudrate

9600.19200.38400.43000.56000.57600.115200

Solt

2 slots(maxmum)

Accessories

Standard

1*power supply
1*lithium polymer battery
1*DC charging cable
1*USB data cable

Optional

Carrying case
Cradle


IP65 RFID Card Reader Writer 0
IP65 RFID Card Reader Writer 1IP65 RFID Card Reader Writer 2IP65 RFID Card Reader Writer 3IP65 RFID Card Reader Writer 4IP65 RFID Card Reader Writer 5IP65 RFID Card Reader Writer 6IP65 RFID Card Reader Writer 7IP65 RFID Card Reader Writer 8

IP65 RFID Card Reader Writer 9IP65 RFID Card Reader Writer 10IP65 RFID Card Reader Writer 11IP65 RFID Card Reader Writer 12


FAQ

1. How can I place an order?
Please provide the details of your requirements as clear as possible. All details need be confirmed both of us .

2. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call us or advise in your email then we will regard your inquiry priority
3. How to get a sample to check quality?
After price confirmation, you can require for samples. Free for a blank sample to check the design and paper quality, as long as you afford the express freight. For printed samples, we will check $30~$100 to cover the cost on film&printing.

4. How long get the samples?
After you pay the sample charge and send us confirmed files, the samples will be ready in 3~7days. The samples will be sent to you via express and arrive in 3~5 days.
5. What kind of files do you accept for printing?

AI, PDF, PSD, CDR, etc.
6. Can you do the design for us?
Yes, we have a professional team having rich experience in design and manufacturing.
7. What about the lead time for mass production?
Depends on the order quantity and the season you place the order.
8. What is your terms of delivery?
We accept EXW, FOB, CNF, DDU, DDP, etc.
9. Could I put our own logo on the card?
Yes,customized is welcome .
