Product Details
Place of Origin: Shenzhen,China
Brand Name: JH
Certification: CE,RHOS,SGS
Model Number: JH-RW05
Payment & Shipping Terms
Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: 1pcs /box
Delivery Time: 5-8work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1000000 per month
Sheating Material: |
ABS |
Size: |
100*100*27 Mm |
Operating Frequency: |
13.56MHz |
Support Standard: |
ISO/IEC14443A, ISO/IEC14443B, ISO/IEC15693 |
Power Supply: |
Nt: From USB Or 5VDC / 150mA 200mA |
Interface: |
USB, USB / RS232 / TCP / IP |
Sheating Material: |
ABS |
Size: |
100*100*27 Mm |
Operating Frequency: |
13.56MHz |
Support Standard: |
ISO/IEC14443A, ISO/IEC14443B, ISO/IEC15693 |
Power Supply: |
Nt: From USB Or 5VDC / 150mA 200mA |
Interface: |
USB, USB / RS232 / TCP / IP |

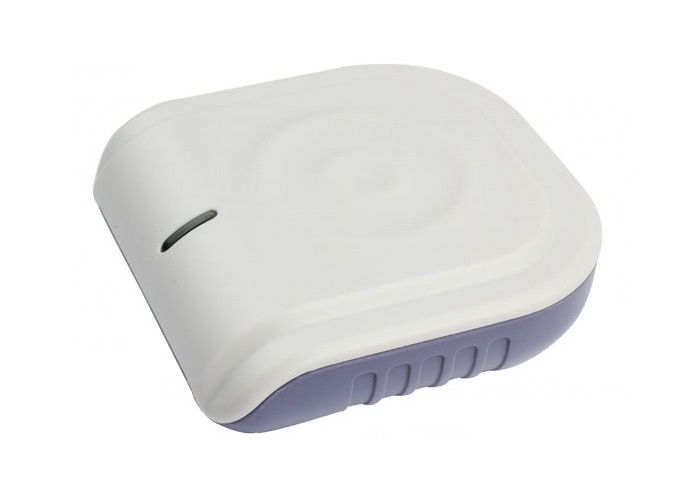

ISO14443 / ISO15693 USB Desktop RFID Reader Writer for rfid card/tag
Description
JH-RW05 contactless reader-writer can read ISO14443A, B and ISO15693 standard cards. It realizes connection with the PC machine and associated equipment through RS232 serial interface or USB port or TCP/IP interface. Drive development kinds of various platforms are provided together with the machine; attached demonstration programs realize all functions of the access radio frequency card.
JH-RW05 type of reader-writer is a necessary front-end processing device for developing contactless card related application products and system integration with rich and complete interface communication functions. It is widely used in the smart card management application systems fields
Features
Specification
|
Item
|
RFID card reader
|
|
Dimension
|
100 mm (L) x 100 mm (W) x 27 mm (H)
|
|
Interface
|
TCP/IP+WIFI
|
|
Operating Distance
|
Up to 50 mm (depends on the tag type)
|
|
Supply Voltage
|
Regulated 5V DC
|
|
Supply Current
|
200mA (operating); 50mA (standby); 100mA (normal)
|
|
Working Temperature
|
0-50 °C
|
|
Working Frequency
|
13.56Mhz
|
|
Working products
|
ISO 14443A, ISO15693 cards/ tags/ wristbands, etc.
|
|
Operating System Support
|
Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008
Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, - - Win Server 2008 R2 x64 Windows CE 5.0 Mac Linux |
Application
Detailed image
